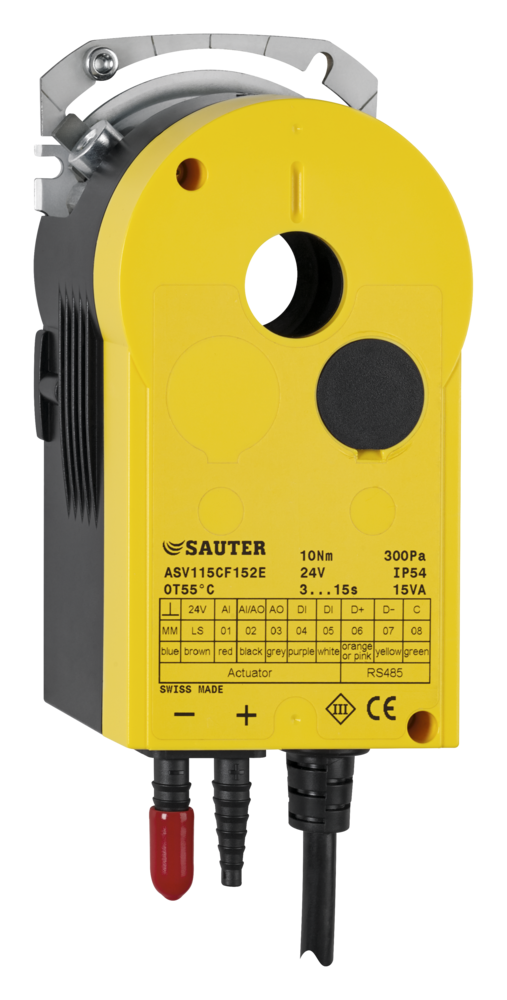

Compact controller ASV115CF132E


00255872_0

COMPACT, STATIC

With service interface and bus communication facility, for contaminated extract air or for pressure control

Compact component for VAV terminal units, especially for aggressive air or gases in extract air systems

  • Controller, static differential pressure transducer and actuator are fitted together in one casing
  • Volume flow rates Vmin and Vmax are factory set as parameters
  • Ideal for carrying out service from the switch cabinet or control panel
  • Change of parameters using adjustment devices
  • Suitable for constant and variable volume flows as well as for Vmin / Vmax switching
  • Bus communication is possible due to the Sauter SLC interface

Application

Application

  • Electronic volume flow controllers of Type Compact are compact, all-in-one control devices for VAV terminal units
  • Static differential pressure transducer, electronic controller, and actuator are fitted together in one casing
  • Suitable for different control tasks depending on how the input for the setpoint value signal is used
  • The output signals (voltage signals or data points) of the room temperature controller, central BMS, air quality controller or similar units control variably control the volume flow
  • Local override control by means of switches or relays
  • Volume flow rate actual value is available as a linear voltage signal or data point

Description

Parts and characteristics

  • Sensor for static differential pressure measurements
  • Mechanical stops for limiting the damper blade positions
  • Actuators with overload protection
  • Release button to allow for manual operation

Technical information

Function

  • Function

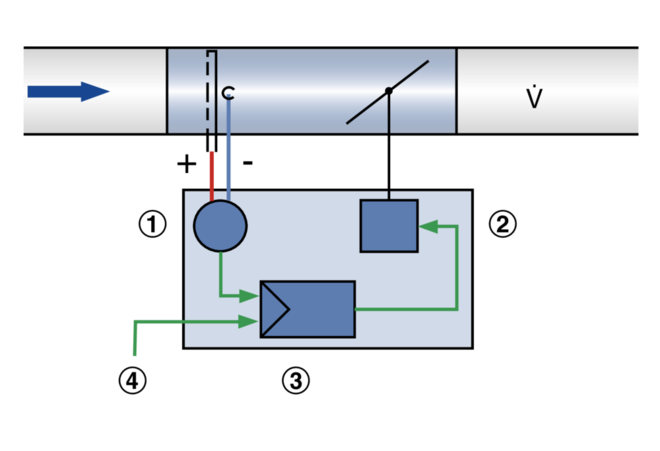

Principle of operation – Easy and Compact controllers 00132245_0
① Differential pressure transducer
② Actuator
③ Volume flow controller
④ Setpoint value signal


Functional description

VAV terminal units control the volume flow in a closed loop, i.e. measurement – comparison – control.

The volume flow rate is determined by measuring the differential pressure (effective pressure). For this purpose the VAV terminal unit is fitted with a differential pressure sensor.

The integral differential pressure transducer transforms the effective pressure into a voltage signal, which is then analysed by the microprocessor of the controller. The volume flow rate actual value is available as a data point or voltage signal. The factory setting is such that a 10 V DC voltage signal always corresponds to the nominal volume flow rate (Vnom).

The volume flow rate setpoint value comes from a higher-level controller (e.g. room temperature controller, air quality controller, central BMS), either as a voltage signal or as a data point, or from local switch contacts. Variable volume flow control results in a value between Vmin and Vmax. It is possible to override the room temperature control, e.g. by a complete shut-off of the duct.

The controller compares the volume flow rate setpoint value to the actual value and controls the integral actuator accordingly.

Volume flow rate parameters and voltage ranges are factory stored in the controller. Changes on the customer's site can easily be carried out using an adjustment device, a notebook with service tool, or a bus interface.

Volume flow control

  • The volume flow controller works independent of the duct pressure
  • Differential pressure fluctuations do not result in permanent volume flow rate changes
  • To prevent the control from becoming unstable, a dead band is allowed within which the damper blade does not move.

Variants, RS-485 (SLC, Sauter)

  • Variants
  • RS-485 (SLC, SAUTER)

Any attachments are to be defined with the order code of the VAV terminal unit.

Compact controllers for VAV terminal units

Order code detail Part number Type Type of VAV terminal unit

SA0

A00000043584

ASV115CF132E

SC0

A00000043585

ASV115CF152E

① TVR, TVJ, TVT, TZ-Silenzio, TA-Silenzio, TVZ, TVA, TVRK


Application

  • Electronic volume flow controllers ASV115CF132E and ASV115CF152E as Compact controllers
  • Variable air or constant air volume flow control
  • Second, integral controller for room temperature control or differential pressure control
  • The flow rate is measured according to the static measurement principle
  • Voltage range for the actual and setpoint value signals 0 – 10 V DC or 2 – 10 V
  • Separate inputs for override control Vmin and Vmax
  • RS-485 communication interface (Sauter local communication)
  • Setpoint value defaults and overrides by means of data exchange with a higher-level system
  • Status values such as volume flow rate actual value and damper blade position are sent to the interface
  • Functionality and I/O assignment to be parameterized by the customer


Construction

For TVR, TVJ, TVT, TZ-Silenzio, TA-Silenzio, TVZ, TVA, TVRK

  • SA0: ASV115CF132E with integral actuator
  • SC0: ASV115CF152E with integral fast-running actuator

Communication interface

  • RS-485 (SLC, Sauter local communication)
  • Up to 31 devices per segment

Operating modes

  • Variable volume flow control: Vmin – Vmax
  • Vmin: Minimum volume flow rate
  • Vmax: minimum volume flow rate

Commissioning

  • Complete project-specific parameterization and commissioning with manufacturer software and interface adapter required

  • For C-values, see installation instructions for VAV controllers


Compact controller ASV115CF132E

Supply voltage (AC)

24 V AC ± 20 %, 50/60 Hz

Supply voltage (DC)

24 V DC −10/+20 %

Power rating (AC)

5.7 VA max.

Power rating (DC)

3.3 W max.

Torque

10 Nm

Running time for 90°

30 – 120 s, adjustable

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.1 mA max.

Input for flow rate shift signal or output for flow rate deviation, configurable

As input: 0 – 10 V DC, Ra > 100 kΩ; as output: 0 – 10 V DC, 0.1 mA max.

Input for switch contact Vmin or temperature sensor, configurable

Volt-free or Ni1000, 0 – 50 °C

Input, switch contact Vmax

Volt-free

Communication

RS-485, not galvanically isolated, 115 kBd

Communication format

Sauter local communication (SLC)

Network

Linear, no branches, up to 31 devices per segment

Cable termination

Cable length 200 – 500 m, 120 Ω both ends

IEC protection class

III (protective extra-low voltage)

Protection level

IP 54

EC conformity

EMC to 2014/30/EU

Weight

0.8 kg


Compact controller ASV115CF152E

Supply voltage

24 V AC ± 20 %, 50/60 Hz

Power rating

15 VA max.

Torque

10 Nm

Running time for 90°

3 – 15 s, adjustable

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.1 mA max.

Input for flow rate shift signal or output for flow rate deviation, configurable

As input: 0 – 10 V DC, Ra > 100 kΩ; as output: 0 – 10 V DC, 0.1 mA max.

Input for switch contact Vmin or temperature sensor, configurable

Volt-free or Ni1000, 0 – 50 °C

Input, switch contact Vmax

Volt-free

Communication

RS-485, not galvanically isolated, 115 kBd

Communication format

Sauter local communication (SLC)

Network

Linear, no branches, up to 31 devices per segment

Cable termination

Cable length 200 – 500 m, 120 Ω both ends

IEC protection class

III (protective extra-low voltage)

Protection level

IP 54

EC conformity

EMC to 2014/30/EU

Weight

0.8 kg
